TGA-IR Interface (Evolved Gas Analysis)
Gas cell and interface between TGA and FTIR instruments for evolved gas analysis. Unique cell design, Flexible Heated Transfer Line (240C) and Dijital Control Unit
Combination of TGA and FTIR is a powerful technique for the evolved gas analysis during material heating under controlled atmosphere. Transferring evolved gas with a constant flow rate to the temperature-controlled IR-cell during the process will provide information about gas species while material is loosing weight. Gravity aligned quartz cell design and heatable transfer line makes this product highly resistant to corrosive gas environment and prevent water condensation
Cell Specifications
| Cell Material | Quartz & completely Inert flow cell |
|---|---|
| Cell Design | Gravity aligned gas flow path |
| Path Lenght | 150 mm (high S/N ratio) |
| Dead Volume | 11mL |
| Temperature Range | Up to 550C |
| Window Options | 25x2mm KBr (default), CaF2, ZnSe or BaF2 IR |
| Connector | Military type 8-pin connector |
| Cell Dimensions | 160 x 120 x 120 mm |
Transfer Line Specifications
| Inner Tube Outer Diameters | 42mm |
|---|---|
| Transfer Line | 100 to 250 cm long |
| TGA Purge Flow | Up to 200mL/min (60 ml/min recommended) |
| Inner Tube Options | 1/8 inch stainless steel, Teflon, Silcosteel (Restek) |

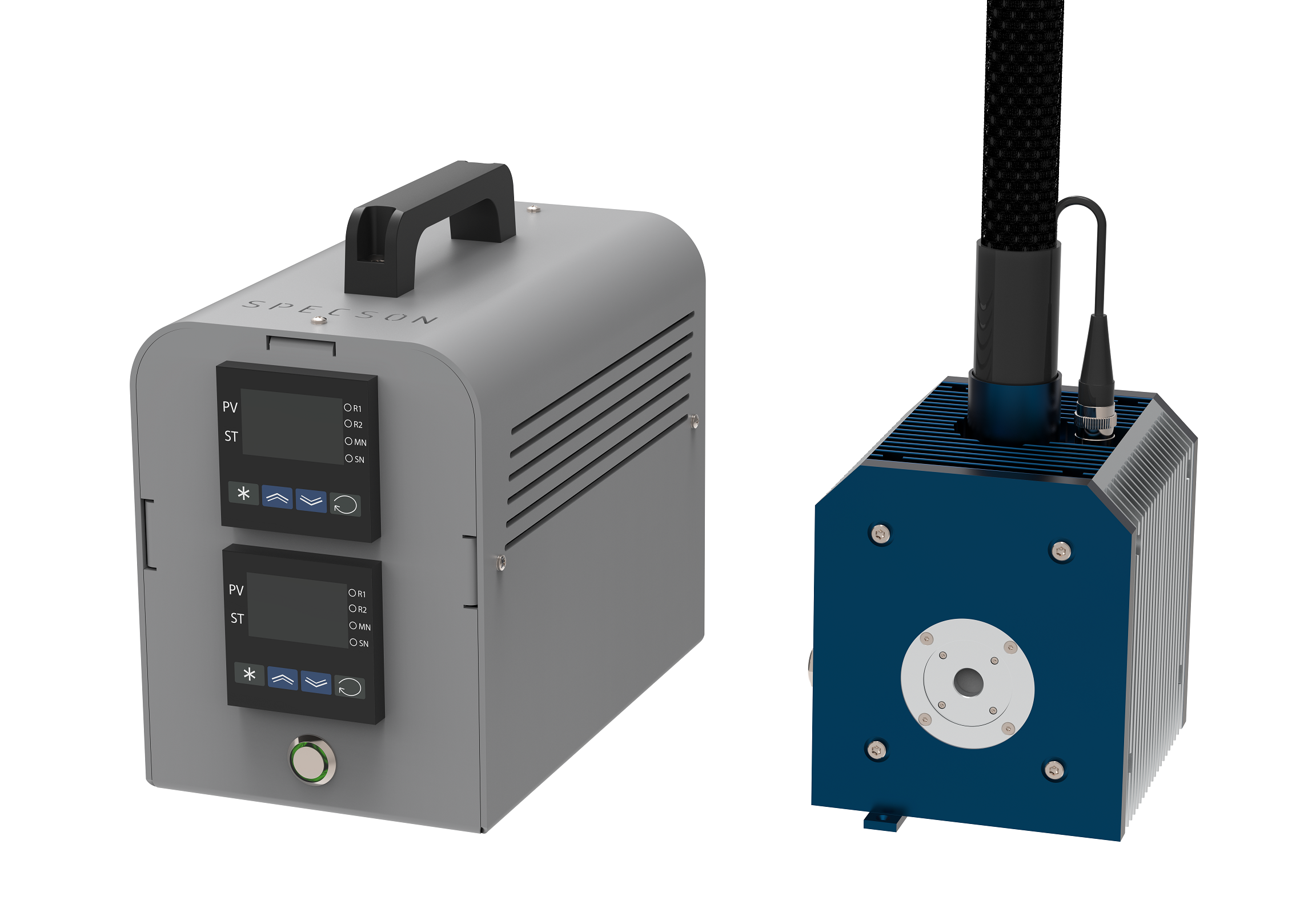

PC-Controlled Heating Unit (Standard)
| Controllers | Two independent PID controllers for Gas Cell and Transfer Line |
|---|---|
| Software | SPECSON Software for PC control |
| Case | Robust 3mm anodized aluminum case |
Dijital Control Unit (Optional)
| Controller | 7 inch capacitive touch screen |
|---|---|
| Dry Vacuum Pump | 20L/min |
| Flow Stabilization | MFC (Bronkhorst or Vögtlin) |
| In-line Filter | 7 µm mesh size |
