Photoelectrochemical Cell

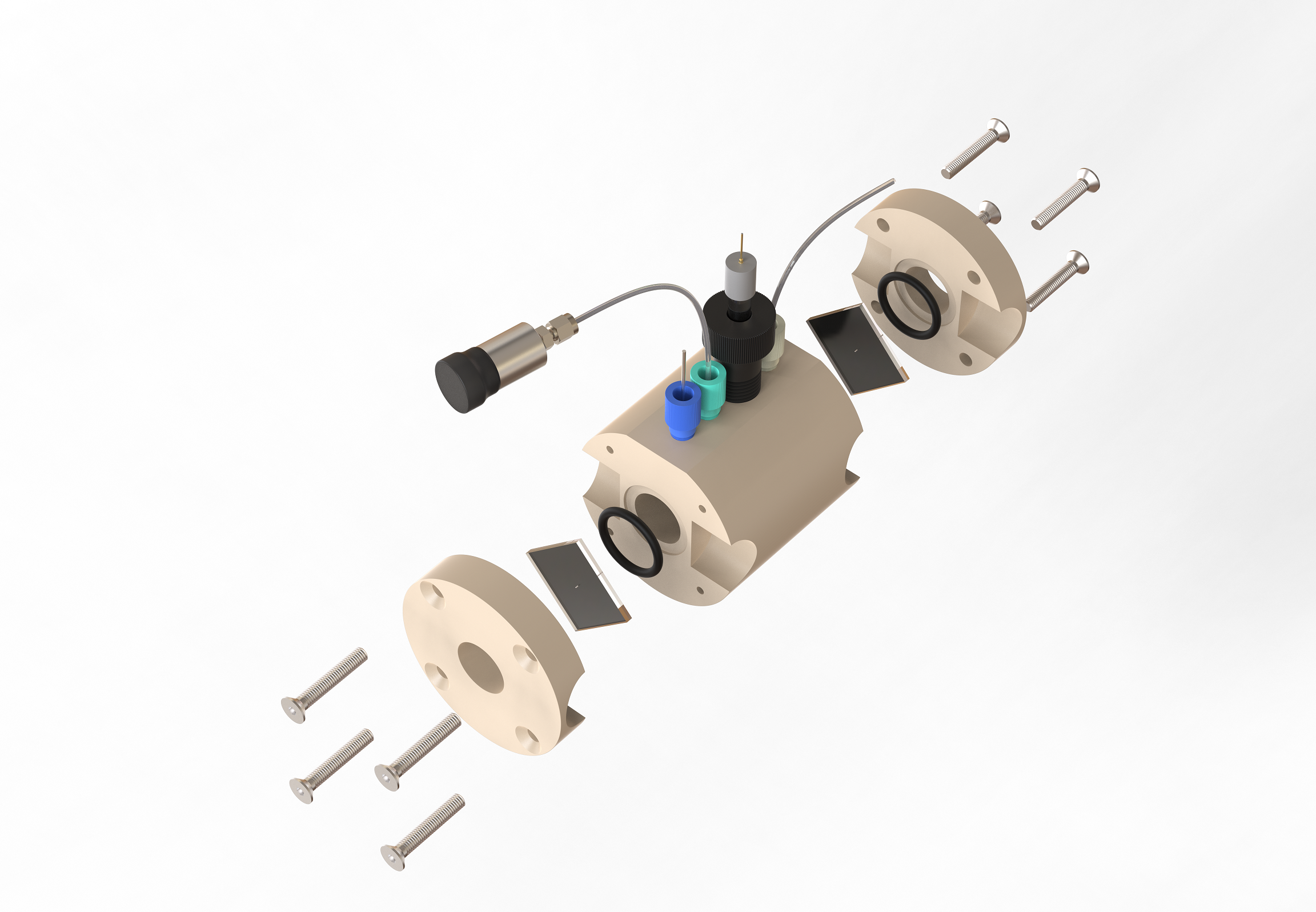

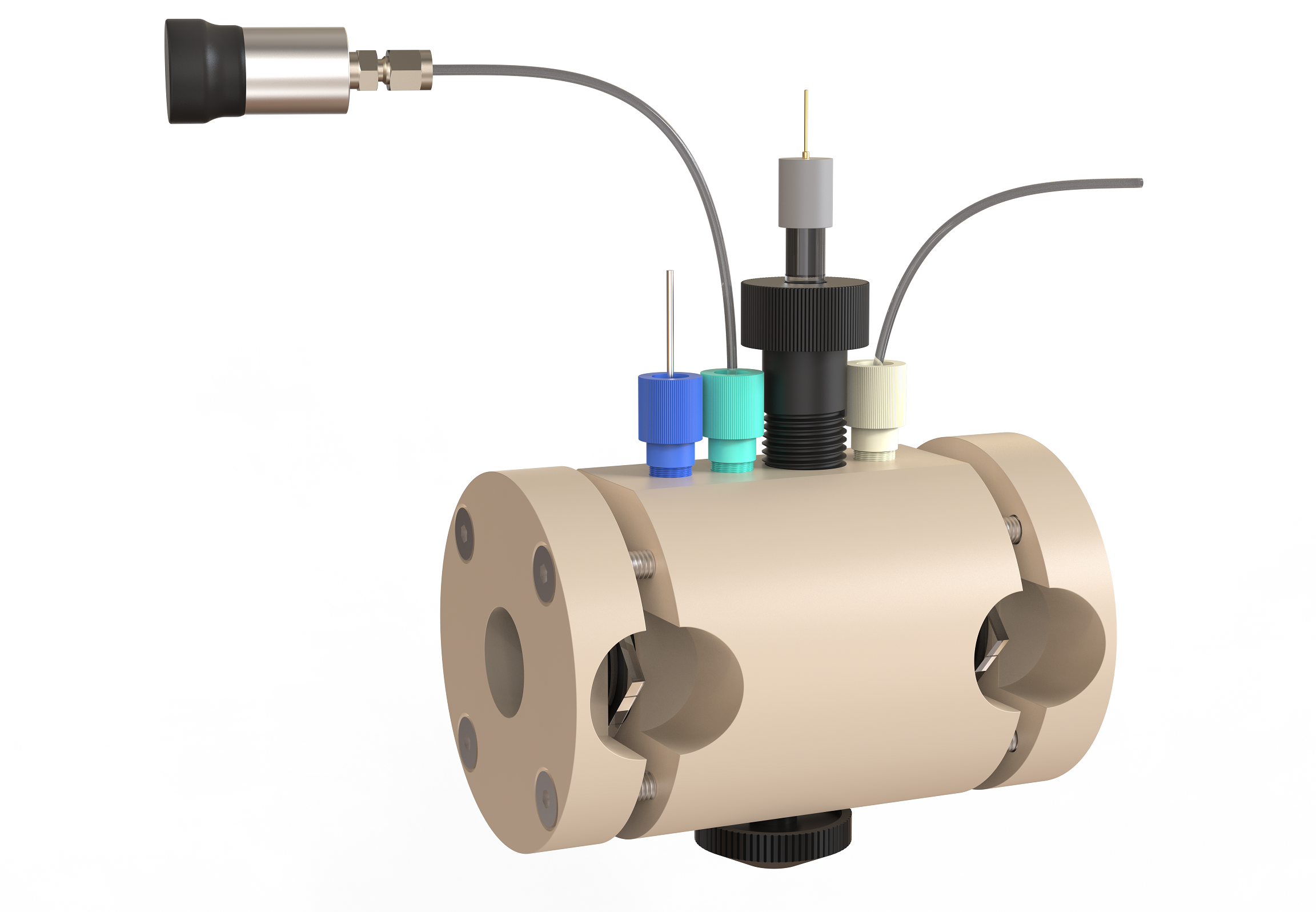

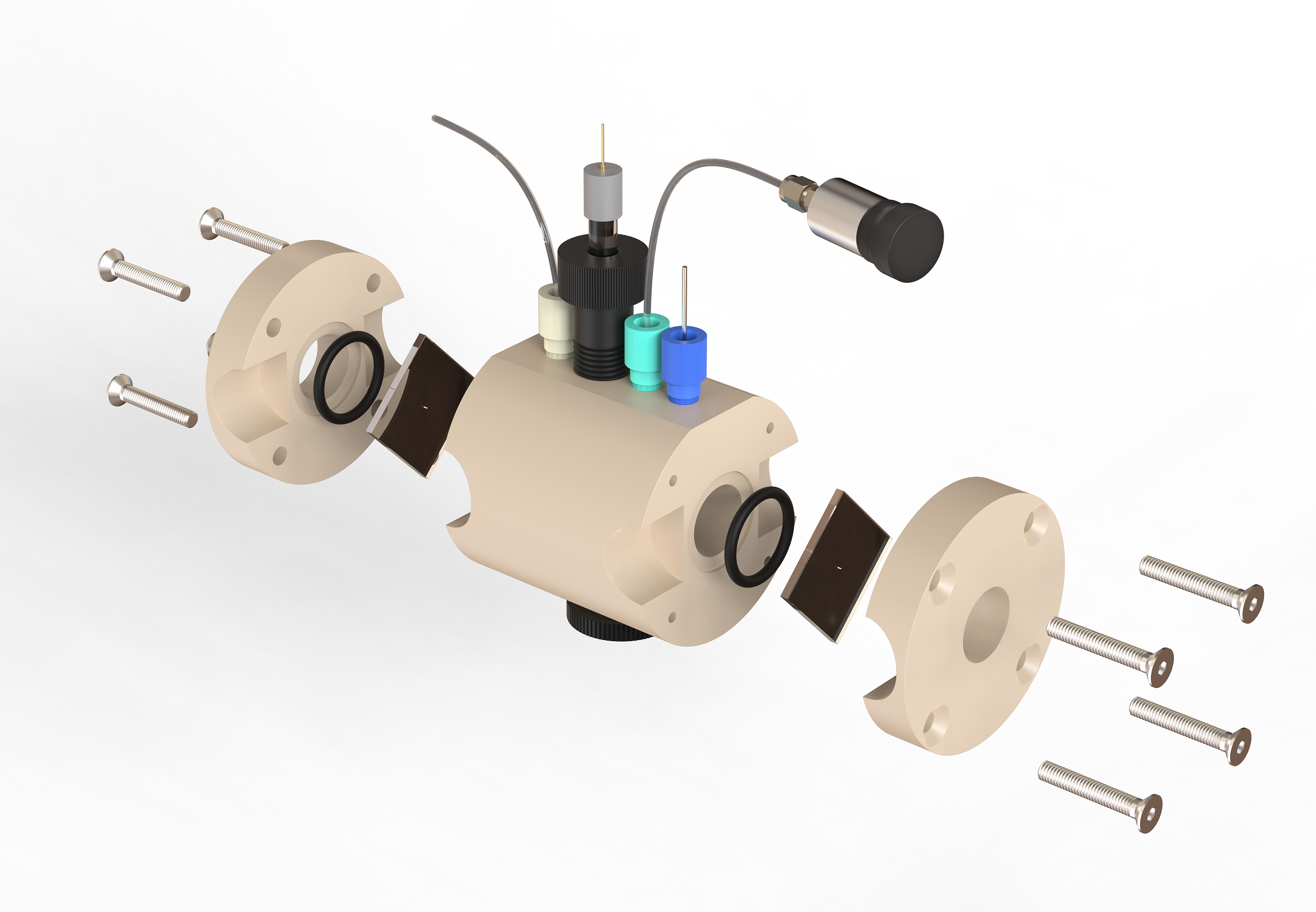

Double-Sided, one compartment, horizontally mounted, and gas tight cell setup
Horizontally mounted and height adjustable double-sided photo electrochemical cell for the investigation of thin-film photoanode and photocathode. This setup allows you to perform measurements in 2- or 3- electrode system. Cell design, volume, number of sides and compartments can be customized based on your own research.
Technical Specifications
| Nominal Exposure Area | 2cm² |
|---|---|
| Minimum Electrolyte Volume | 10mL |
| Maximum Electrolyte Volume | 15mL |
| Electrode Plug Diameter | 6mm |
| Recommended Substrate Size | 25mmx25mm (min) |
| Maximum Substrate Thickness | 4mm |
| Material | PEEK or PTFE |
| Country of Origin | Turkey |
| Net Weight | 580g |
| Dimensions | 55mmx88mm |

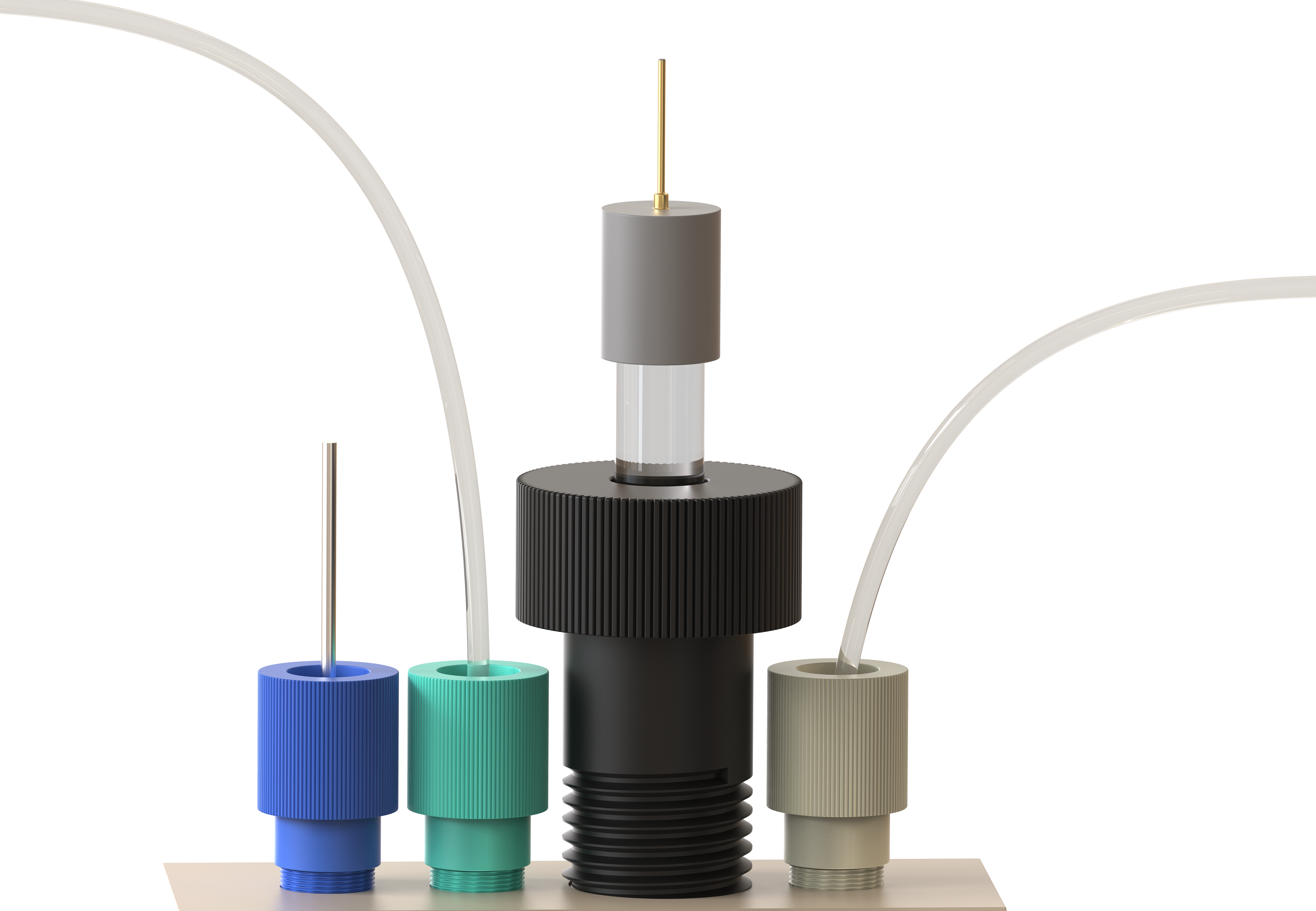

Setup Includes
| Metal Wire Auxiliary Electrode | 1mm*60mm Pt |
|---|---|
| Reference Electrode | 6mm Ag/AgCl, or Ag/Ag+ |
| Fittinngs | Flangeless PTFE Fittings 1/4"-28 to 1/16" OD (pack of 5) |
| Connector | Ask for luer lock, barbed and threaded connections |
| Tubing | 500mm PTFE 1/8” or 1/16” OD |
| Screws and O-rings | 8 pieces of M4 SS Screws and 2 sets of O-rings |
