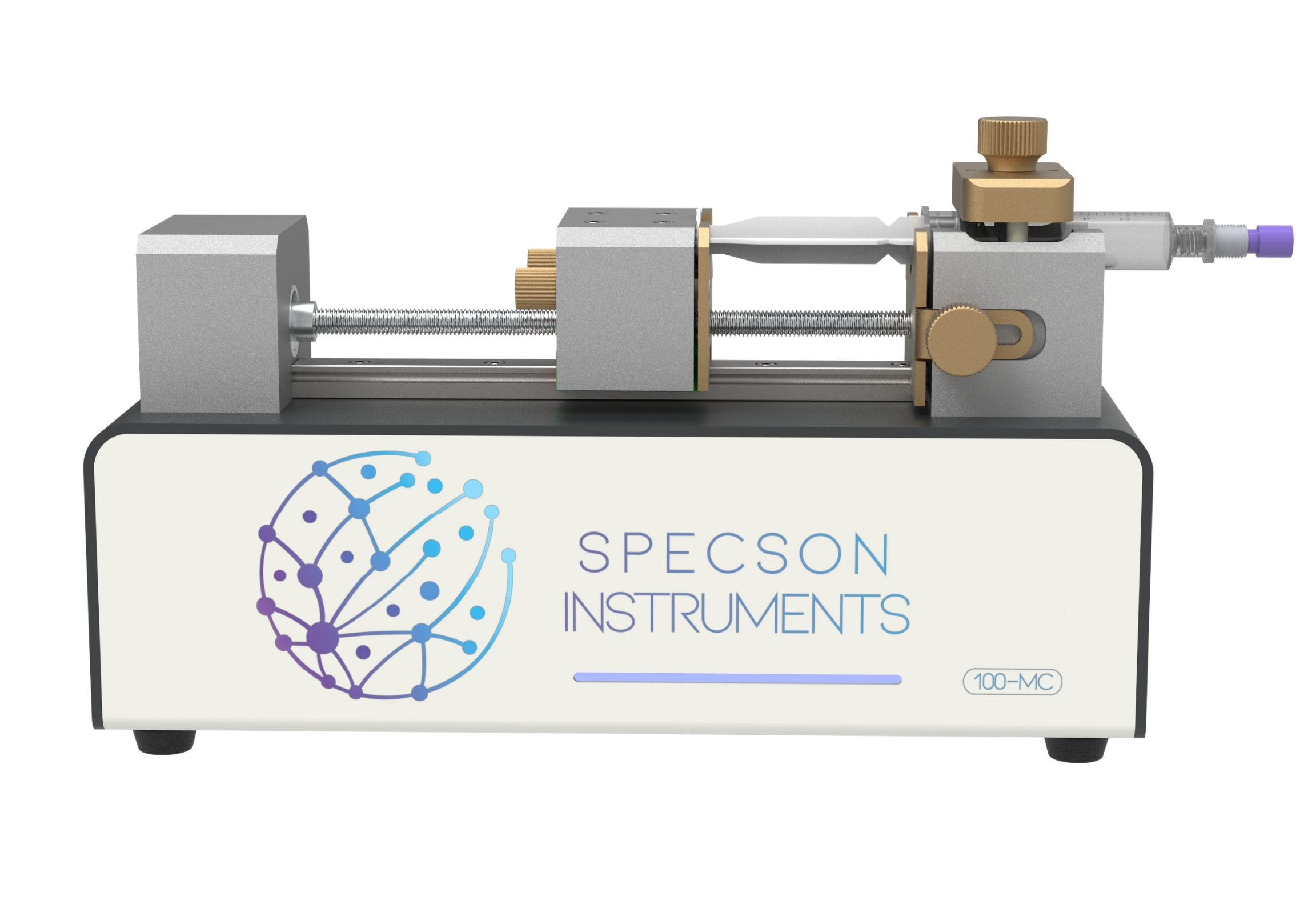

Syringe Pump Specson 100-MC
Syringe Pump Specson 100-MC is a modular injection pump with an external control unit. Users can add up to 7 independent channels with individual control. Control unit comes with 7’’ capacitive touch screen and user friendly interface. Users can easily set infinite number of injection/withdraw steps by using advanced recipe management system. All parts are made out of CNC machined 6061 aluminum.
Technical Specifications
| Mode | Infuse/Withdraw |
|---|---|
| Accuracy | ± < 0.40% |
| Reproducibility | ± < 0.05% |
| Syringe Size(Min/Max) | 0,5µ to 60mL |
| Syringe Type | Plastic, Glass and Stainless Steel |
| Syringe Flow Rates | ------ |
| Minimum Flow Rate | 0.0001µL/min(with 0.5µL syringe) |
| Maximum Flow Rate | 85 mL/min(with 60mL syringe) |
| Linear Force | 61 lb |
| Multi Steps | Infinite number of loop steps |
| Display | 7 inch LCD Capacitive Touch Screen |
| Connectivity | USB-B |
| System Dimensions | 303 x 180 x 104 mm |
| Power | 110/220 VAC switches between 110V to |
| Weight | 4.1kg |
| Motor Drive | 1.8˚ Stepper Motor with Micro-stepping |
| Step Resolution | 0.0528 µm/step |
| Operating Temperature | 4°C to 52°C (40°F to 116°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Modular Capability | Option to add 8 syringe rack |
| Parameter Setting | Option to choose time or rate |
| Humidity | 20% to 80% RH, non-condensing |
| Installation Category | II |
| Regulatory Compliance | CE |
